| Item | Parameter |
| Pixel Pitch | 4mm |
| Module size | 256mm*256mm |
| Cabinet Size(W*H*D) | 512*512*(80±5)mm |
| Pixel Configuration | 1R1G1B |
| Pixels Density | 62500dots/m2 |
| Refresh Rate | ≥1000Hz |
| Package mode | SMD2121 Black Lamp |
| Pixel resolution | 128dots(W)*128dots(H) |
| Max Power | 18W*8 |
| Color Temperature | 6500-9500K |
| Best Viewing Angle | H:140° V:140° |
| Weight | (8.0±0.5)kg |
| Drive type | Constant drive |
| Scan mode | 1/32scan |

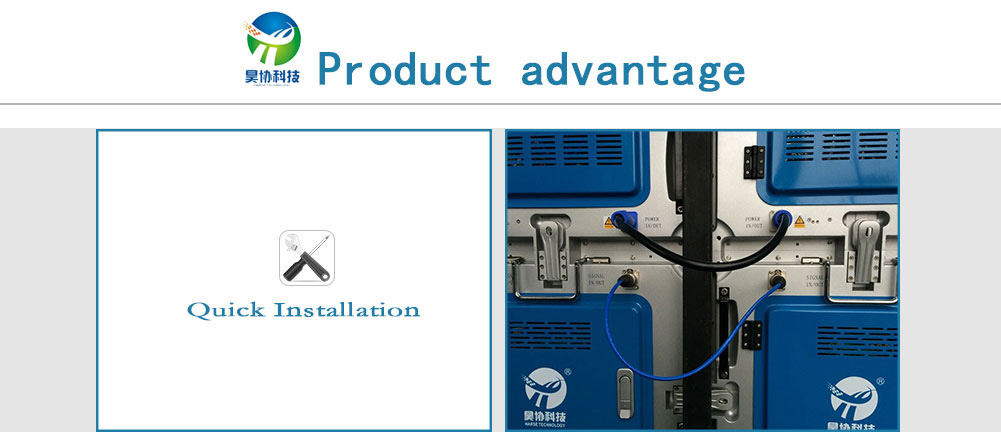

| Port type | HUB75-A |
| Brightness of white balance | ≥1000cd/m2 |
| Best Viewing Distance | 1--5m |
| Protection Level | IP30 |

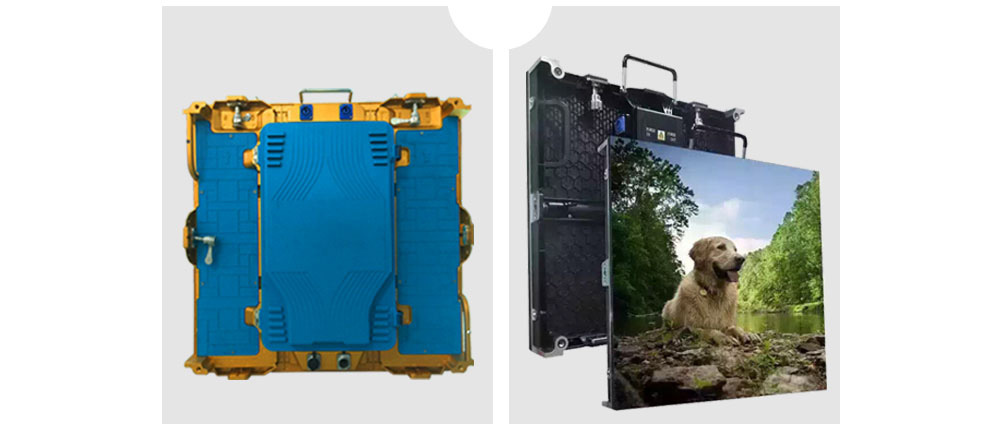

| Cabinet Material | Die-casting Aluminum Alloy Cabinet |
| Operation Voltage | 100v--240v(47--63Hz)/220v50Hz |
| Working Humidity | 10%-60% |
| Working Temperature | -20℃--+50℃ |
