Your present position:Home > Case >  Integrated 3in1 SMD Full Color Displays

p4 indoor smd led display

p4 indoor smd led display(with size:2.304m(W) x1.536m(H))

p4 smd indoor led display.jpg

Technical Parameters:

Module parameters:

1

Pixel Pitch

4mm

2

Pixel Configuration

1R1G1B SMD

3

Module Resolution

32dots X 32dots

4

Module Pixles

3600dots

5

Module Size

128mm X 128mm

6

Module Weight

0.4KG

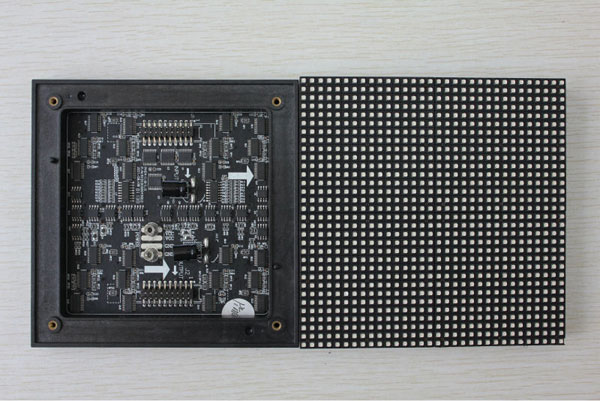

p4 SMD led module.jpg



Cabinet Parameters:

1

Cabinet Size(WXHXD)

768X768X130(mm)

2

Cabinet Resolution

192 X192(dots)

3

Module Quanity

6x6=36pcs

4

Cabinet Pixels

36864dots

5

Pixel Density

62,500dots/m2

6

Average Power Consumption

240W/m2

7

Max. Power Consumption

630W/m2

8

Material

Iron

9

Cabinet Weight

45KG/m2

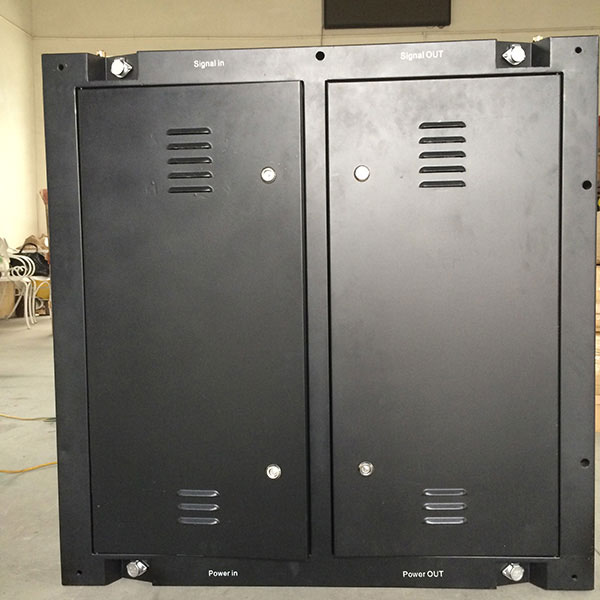

flight cabinet.jpgp4 smd led display cabinet.jpg



Whole P4 Indoor SMD LED Display parameters:

1

Screen Area

2.304m(W) x1.536m(H)=3.542m2

2

Whole Screen Resolution

576dots(W)X384dots(H)=221184dots

3

Cabinet Quantity

3(W)X2(H) =6pcs

4

Brightness

4000mcd/

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/8 Scan

7

View Angle

Horizontal ±60°Vertical ±45°

8

Optimal Viewing Distance

6m-100m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh requency

800Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

0.00001

14

Power Consumption

Max.:630W/    Average:230W/

15

Screen weight

45kg/

16

MTBF

>10,000 hours

17

Life span

100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP54

21

Temperature-operating

30℃~50

22

Humidity-operating

10%95%

23

Controlling system

LINSN

24

Operating System

Windows98/me/2000/NT/XP
