Your present position:Home > Case >  Integrated 3in1 SMD Full Color Displays

p6 indoor led display

 Full color p6 indoor led display

P6 indoor led display.jpg

p6 indoor led display Description
Advantage SMD p6 indoor led display:
1. p6 indoor led display adopt SMD 3 in 1 technology, so that the horizontal and vertical viewing angle LED display up to 140 degrees. Within this range, no change in any of the image angle variation and color.
2. Vivid color performance. Achieve a high degree of consensus full-screen color and brightness
3. Information from a camera, video, DVD, LD, VCD, TV, etc.
4. A variety of file formats, such as MOV, MPG, DAT, AVI, VOB, etc.
5. Can be automatically adjusted or manually adjust the brightness, contrast, saturation
6. Synchronize display with your computer

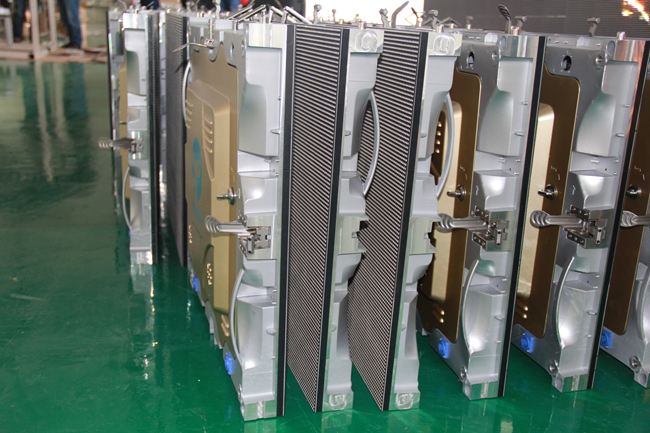

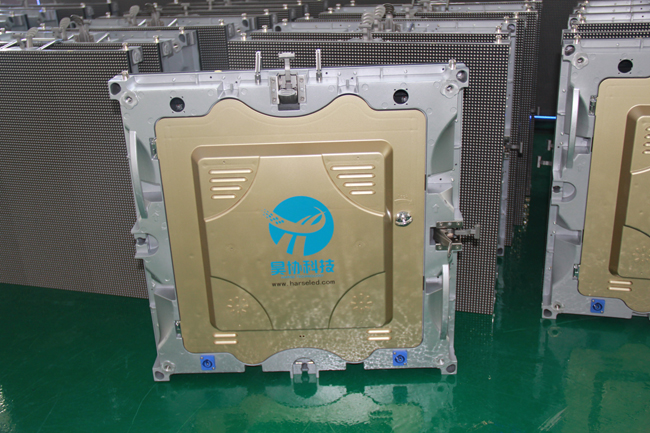

 P6 indoor led displays.jpgled display.jpg
p6 indoor led display module parameters:

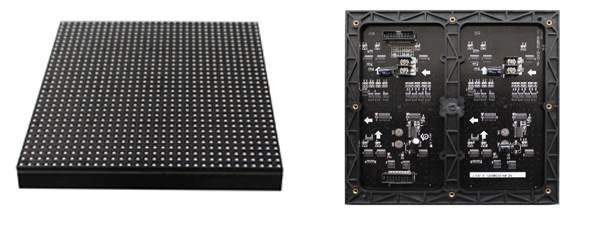

p6 indoor led display module.jpg

Pixel Pitch

6mm

Pixel composing

1R1G1B

Density

27,777dots/m2

module resolution

64 dots* 32 dots

Module size

384mm * 192mm

Standard cabinet size

768mm*768mm or design

Weight per sqm

35 Kg/sqm

Whiteness brightness

1100 cd/sqm

Led package

SMD 3in1

Wave Angle (H)

120°(H)/90°(V)

Best view distance

≥6m

Working voltage

AC 220v/380v±10%50~60Hz

Power consumption/ m2

250W/sqm

Short circuit protection

Yes

Refresh

400 Hz

Changing frame frequency

60 Hz

Driving method

Constant driving ,1/16scan

Working Environment

Indoor

Working temperature

-10~50°C

Working Humidity

-10~90%

Out of control

1/10,000 ( scattered)

lifetime

100,000 hours
