P8 Outdoor Integrated 3in1 SMD LED Screen

 P8 Outdoor Integrated 3in1 SMD LED Screen

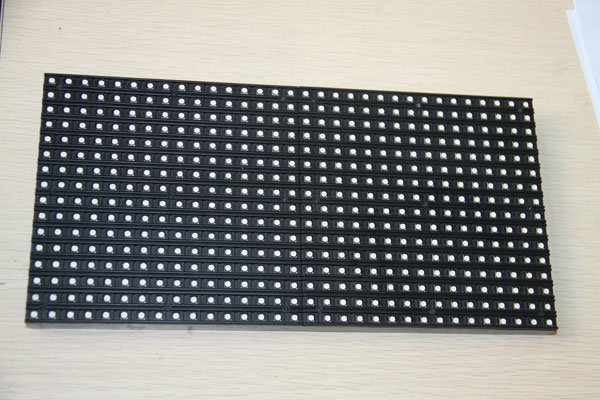

p8 outdoor smd led screen.jpg



Technical Parameters:

p8 outdoor smd led screen module parameters:

  1

Pixel Pitch

8mm

2

Pixel Configuration

1R1G1B SMD

3

Module Resolution

32dots X 16dots

4

Module Pixels

512dots

5

Module Size

256mmW X 128mmH

6

Module Weight

0.5KG

p8 smd.jpg



Parameters of p8 SMD outdoor led cabinet:

1

Cabinet Size(WXHXD)

1024X640X130(mm)

2

Cabinet Resolution

128 X 80(dots)

3

Module Quanity

20pcs

4

Cabinet Pixels

960dots

5

Pixel Density

15,625dots/m2

6

Average Power Consumption

380W/m2

7

Max. Power Consumption

900W/m2

8

Material

IRON

9

Cabinet Weight

40KG

P8 Outdoor Integrated 3in1 SMD LED Screen parameters:

1

Screen Area

3.072m(W) x 1.92m(H)=5.898m2

2

Whole Screen Resolution

384dots(W)X240dots(H)=92160dots

3

Cabinet Quantity

3(W)X3(H) = 9pcs

4

Brightness

6000mcd/

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/8 Scan

7

View Angle

Horizontal ±60°Vertical ±45°

8

Optimal Viewing Distance

8m-100m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh requency

800Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

0.00001

14

Power Consumption

Max.:900W/    Average:380W/

15

Screen weight

45kg/

16

MTBF

>10,000 hours

17

Life span

100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP54

21

Temperature-operating

30℃~50

22

Humidity-operating

10%95%

23

Controlling system

LINSN

24

Operating System

Windows98/me/2000/NT/XP
