DIP Full Color LED Displays

 Outdoor p16 DIP Full Color LED Displays

outdoor p16 DIP led screen.jpg

Technical Parameters:

Module parameters of p16 outdoor DIP led screen:

1

Pixel Pitch

16mm

2

Pixel Configuration

1R1G1B

3

Module Resolution

16dots X16dots

4

Module Pixles

256 dots

5

Module Size

256mm X256mm

6

Module Weight

0.50KG

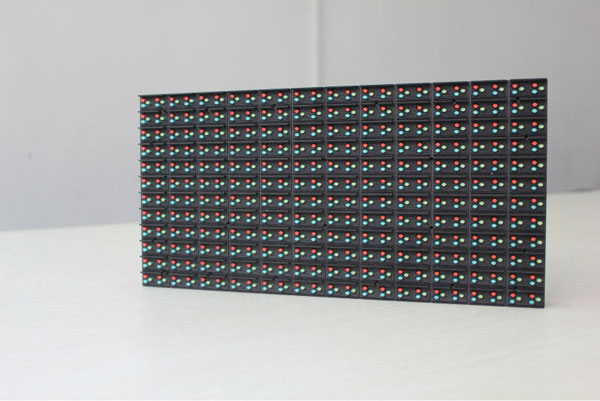

p16 Dip module .jpgp16 outdoor full color led screen module.jpg



Parameters of p16 outdoor DIP full color led displays' cabinet:

1

Cabinet Size(WXHXD)

1024X1024X160mm

2

Cabinet Resolution

64dots X 64dots

3

Module Quanity

16pcs

4

Cabinet Pixels

4096dots

5

Pixel Density

3,906 dots/m2

6

Average Power Consumption

405W/m2

7

Max. Power Consumption

910W/m2

8

Material

Iron

9

Cabinet Weight

60KG/m2

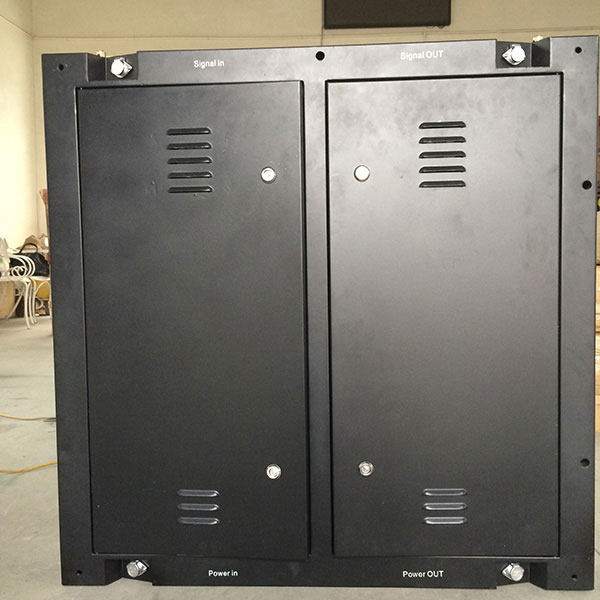

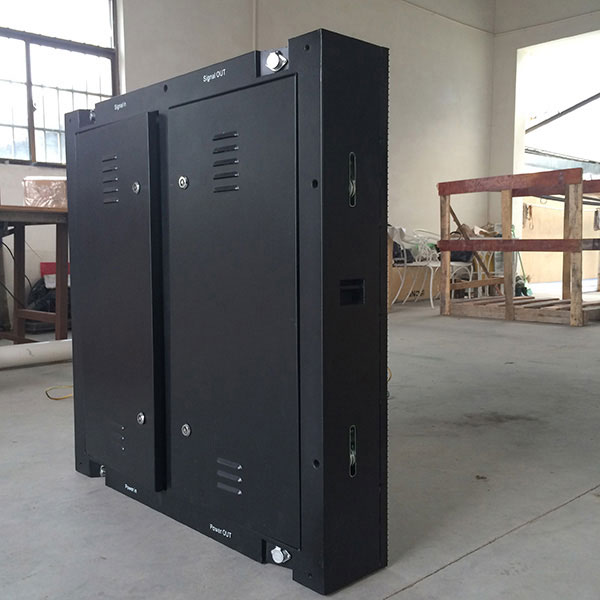

flight cabinet.jpgled display cabinet.jpg



Parameters of whole p16 outdoor DIP full color led displays:



1

Screen Area_A

6.144m(W)x8.192m(H)= 50.33

2

Whole Screen Resolution_A

384dots(W)X512dots(H)=196608dots

3

Cabinet Quantity

6(W)X8(H)=48pcs

4

Brightness

6500mcd/

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/4

7

View Angle

Horizontal 160° Vertical 90°

8

Optimal Viewing Distance

12-200m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh requency

≥400Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

≤0.00001

14

Power Consumption

Max.: 930W/    Average: 410W/

15

Screen weight

55kg/

16

MTBF

>10,000 hours

17

Life span

≥100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP65

21

Temperature-operating

4060

22

Humidity-operating

10%95%

23

Controlling system

LINSN

24

Operating System

Windows98/me/2000/NT/XP

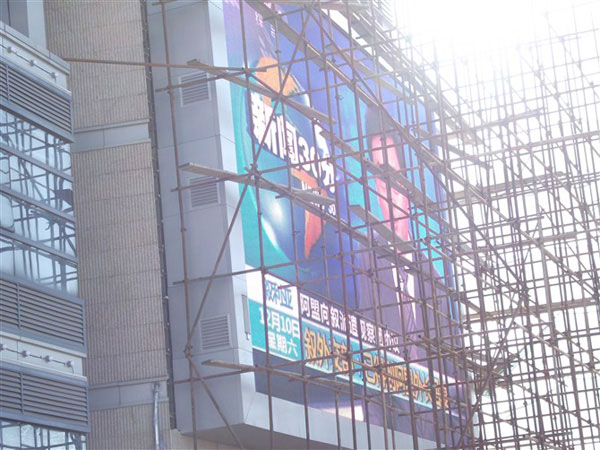

p16 dip led screen.jpg

p16 outdoor led screen.jpg
