Red Color LED Signs
F 3.75 Dot Matrix Red Color LED Signs
Dot Matrix led signs Technology:
Utilizing new manufacturing techniques our engineers have recently been able to develop a range of high brightness full colour dot matrix modules to create cost effective displays for the signage / advertising industry. These high resolution display modules are available in 6mm, 7.62mm and 10mm pixel pitch, with a brightness level of 2700 nits making them suitable for both indoor / window / semi outdoor applications. The board design means the display has a more even surface offering greater uniformity and colour blending across the surface.

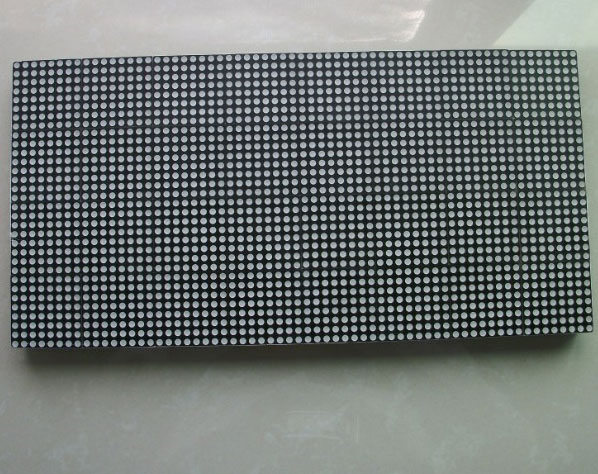

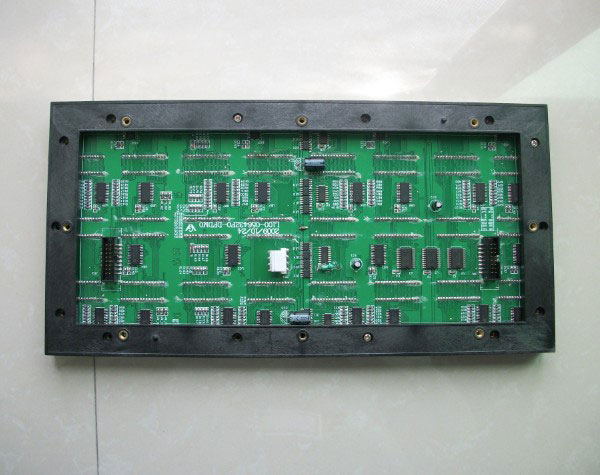

Picture of Dot matrix led modules:
Technical Parameters of F 3.75 Dot Matrix Red Color LED Signs:
|
Item |
Unit |
Parameters |
|
Pixel pitch |
mm |
4.75 |
|
Pixel composition |
1R1G/1R |
|
|
LED Package |
8*8 Array Module |
|
|
Resolution of module |
dots |
64*32 = 2048 |
|
Module size |
mm |
304*152 |
|
Pixel density |
Dots/m2 |
44321 |
|
Brightness |
Nits |
>=200 |
|
Scan mode |
1/16 scan (Constant voltage) |
|
|
Viewing angle(H/V) |
120°/120° |
|
|
Module maximum power |
27.0w |
|
|
Working environment |
Indoor |
|
|
Other features |
LEDs & ICs in 1 PCB |
|
