P10 Indoor SMD full color LED Display
P10 Indoor SMD full color LED Display
Parameters of indoor smd p10 led screen:
|
Model |
P10 |
|
Pixel Pitch |
10mm |
|
LED standard |
SMD3528 |
|
LED Configuration |
1R1G1B |
|
LED Density |
10000dots/㎡ |
|
Hor.Viewing Angle |
≥120° |
|
Vert.Viewing Angle |
≥75° |
|
Optimal Viewing distance |
10m ～ 100m |
|
Luminance |
≥1000CD/㎡ |
|
Display colors |
1024x1024x1024=1073741824 kinds |
|
Cabinet |
Punch moulding with thick cold-rolled sheet of 1.5MM |
|
Driving Mode |
1/4 scaning |
|
RTI of modules |
Silica gel，heat resisting and fireproof |
|
contrast |
6000:1 |
|
Storage Humidity |
-40℃ ～ +85℃ |
|
Working Humidity |
-20℃ ～ +40℃ |
|
Relative Humidity |
10%～95%RH |
|
AC Working Voltage |
220V±10％ |
|
Average Power Consumption |
300 ～ 500 W/㎡ |
|
Max Power Consumption |
800W/㎡ |
|
Refresh Rate |
≥480Hz |
|
Frame Frequence |
≥60Hz |
|
Malfunction Dot Rate |
1/10000； 2-3/10000after 1 year |
|
GrayScale/Color |
Logic Output：65536 Level，CRT Visual：1024 Gray level，Color：1073741824kinds |
|
Brightness Adjustment |
Adjust according to the environment automatic |
|
Average Trouble Free Time |
≥10000 hours |
|
Life span |
≥100,000 hours |
|
Flatness |
Space between any pixel pitch ≤0.5mm；Space Between modules＜1mm |
|
Uniformity |
Brightness of module is uniformity and strong |
|
Blind Spot Rate |
＜0.0001 |
|
Electric Production |
Protect from Overcurrent, short current and overvoltage |
|
Anti-salt Fog |
Fit with GB/T 2423.17-93、GB2424.10 |

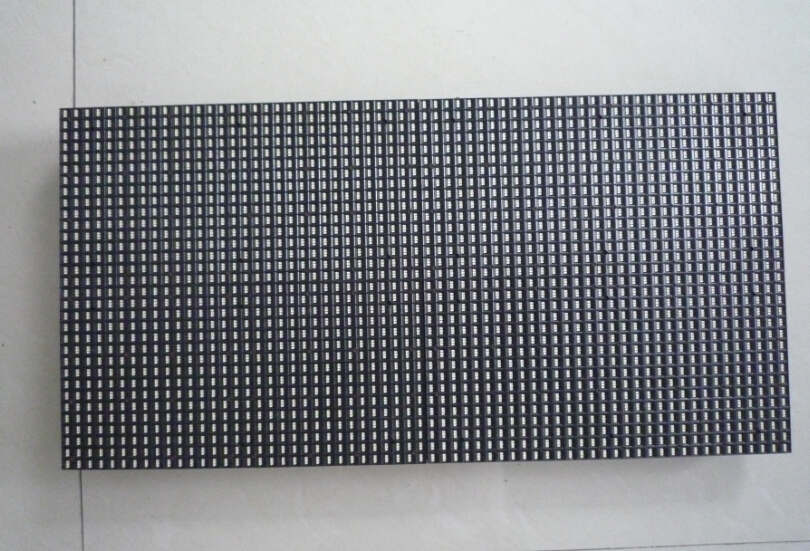

p10 SMD indoor led screen module:
