Video image processor

Features

1.  10+ Bit Faroudja® DCDI Cinema Processing
    2.  New Faroudja® Real Color®
    3.  Faroudja® TureLife™ Video Enhancer
    4.  Advanced 4x4 Pixels Interpolation Scaling Algorithm
    5.  HDMI 1.3a with HDCP, HD 1080p input
    6.  SDI / HD-SDI / 3G-SDI (1080p) Input
    7.  10-bit Processing
    8.  Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals    9.  HD Text, Flash, Graphics & Logo Overlay    10. 4 custom PIP / POP display modes, which can be switched by pressing one button
    11. Hot Spare function, display will be stable and reliable
    12. Picture Freeze function    13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
    14. 2304 x 1152 or 2560 x 816 output for single machine    15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
    16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command
          for operating and setting
    17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
          3×CVBS        1×DVI                             1×HDMI
          2×VGA          1×YPbPr / YCbCr           1×S-VIDEO
          1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI or VGA / DVI / HDMI )
    18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,
          there are 5-channel audio for synchronous switch
    19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
    20. 24 / 7 Application
●    Note to model

Model

Extended Model

LVP605

Video

LVP605S

SDI / HD-SDI

LVP605D

VGA / DVI / HDMI

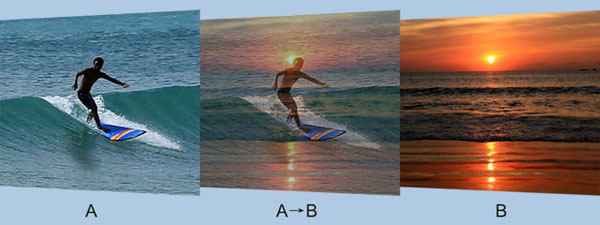

  Feature one : Fade-in / Fade-out

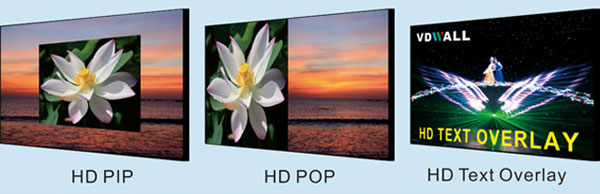

Feature two : PIP, POP, Text overlay

















Specifications



Inputs

Nums / Type

3×Composite
1×S-Video
1×YPbPr
2×VGA(RGBHV)
1×HDMI(1.3a with HDCP)
1×DVI(HDMI)
1×EXT.(Extended )

Video system

PAL / NTSC

Composite Video
Scope / Impedance

1V(p_p)/ 75Ω

S-video Scope /
Impedance

Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω

VGA Format

PC(VESA)

≤2048x1152 @60Hz

VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI Format

SD / HD(CEA-861)

≤1920x1080P @60Hz

PC(VESA)

≤2048x1152 @60Hz

HDMI 1.3 Format( HDCP )

SD / HD(CEA-861)

≤1920x1080P @60Hz

PC(VESA)

≤2048x1152 @60Hz

YPbPr Format

SD / HD(CEA-861)

≤1920x1080P @60Hz

YPbPr Scope / Impedance

Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω

SDI format

SDI-SMPTE 259M-C

576i @50Hz

480i @60Hz

HD-SDI
3G-SDI format

HDSDI-SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M

≤1080P @50Hz/60Hz

AUDIO Scope / Impedance

2.0Vp-p / 10KΩ

Input Connectors

VGA:15pin D_Sub( Female )
DVI:24+1 DVI_D
YPbPr: BNC×3
Composite:BNC
S-VIDEO:4pin mini DIN( Female )
SDI / HD-SDI :BNC

Outputs

Nums / Type

1×VGA(RGBHV)
2×DVI

VGA / DVI Format

1024×768 @60Hz/75Hz
1280×1024 @60Hz/75Hz
1600×1200 @60Hz
1920×1080p @50Hz/60Hz
1366×768 @60Hz
1440×900 @60Hz
2048×1152 @60Hz
2304x1152 @60Hz
2560x816 @60Hz

VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

Output Connectors

VGA OUT:15pin D_Sub( Female )
DVI OUT1:24+5 DVI_I
DVI OUT2:24+1 DVI_D

Others

Control

Panel Button / Knob / RS232

Power

100-240VAC  35W  50 / 60Hz

Operating Temp

5-40 ℃

Humidity

15-85%

Dimensions(Package)

145 mm (height) ×370mm (width) ×535mm (length)

Weight(G.W.)

5.0 Kg

Weight(N.W.)

3.2Kg

Application

      Large venus display applications such as: Rental Performance, TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc.

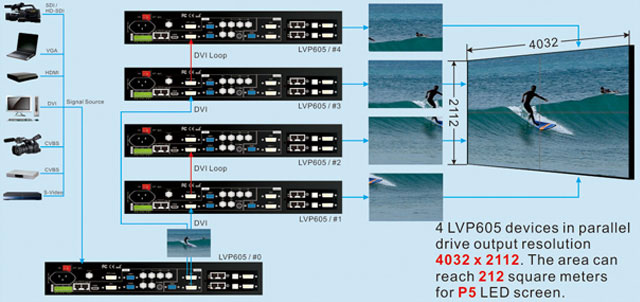

  Synchronic Multi-unit In Parallel

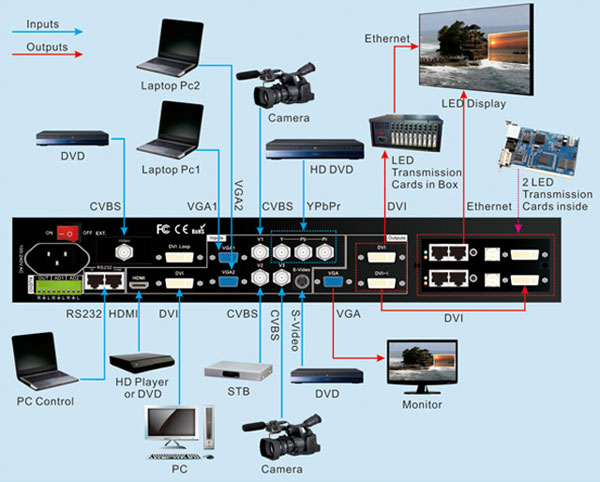

 Connection Diagram:










LED screen display:
