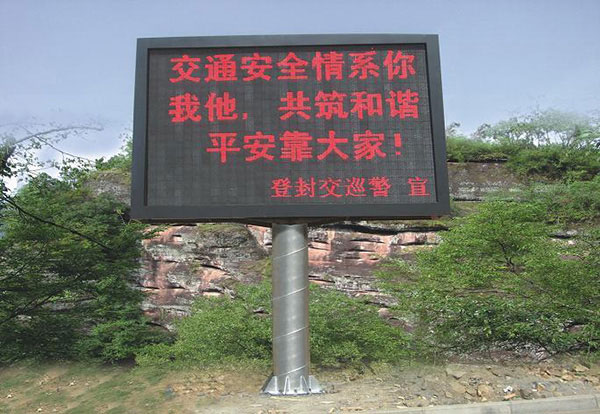

Red Outdoor LED Display Screen
P10 Outdoor LED Display Screen
1. P10 red outdoor led display introduction:
Utilize only the highest grade components available within the industry, to provide product quality and reliability.
All our displays are produced under strict ISO standards and every component is checked and tested prior to delivery.
We pride ourselves on having one of the most comprehensive warranties with the LED industry, offering 1 year warranty on all LED components we produce.
shanghai led display Factory engineers are available to assist our dealers with any large installs, to commission the system and train your engineers on how to operate the control system / software and carry out general maintenance.
2. Features of P10 red outdoor led display Screen
1) Price Advantage: we have the best competitive price at the market; also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
3. Technical Parameters of P10 red outdoor led display module
|
Pixel Pitch |
10mm |
|
Pixel composing |
1R/1G/1B/1W |
|
Density |
10,000dots/m2 |
|
module resolution |
32 dots* 16 dots |
|
Module size |
320mm * 160mm |
4 . Parameters of Whole P10 red outdoor led display screen:
|
Pixel pitch |
10mm |
Short circuit protection |
Yes |
|
Standard cabinet size |
960mm*480mm or design |
Refresh |
400 Hz |
|
Weight per sqm |
30Kg/sqm |
Changing frame frequency |
60 Hz |
|
Whiteness brightness |
2500 cd/sqm |
Driving method |
Constant driving ,1/4scan |
|
Led package |
DIP |
Working Environment |
Outdoor |
|
Wave Angle (H) |
110°(H)/30°(V) |
Working temperature |
-10~50℃ |
|
Best view distance |
≥5m |
Working Humidity |
-10~90% |
|
Working voltage |
AC 220v/380v±10%50~60Hz |
Out of control |
1/10,000 ( scattered) |
|
Power consumption/ m2 |
200W/sqm |
lifetime |
100,000 hours |
