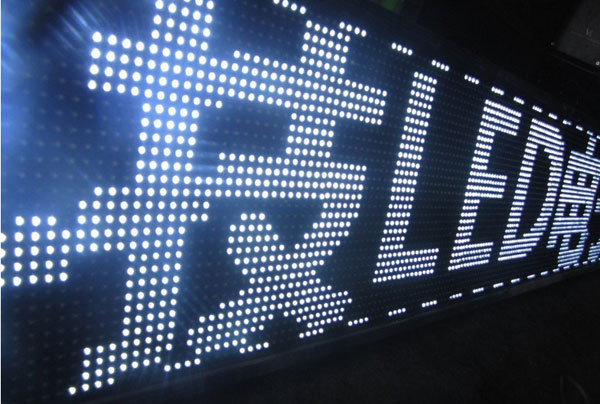

P10 Outdoor White Led Display
P10 Outdoor White Led Display
3. High quality: From material to finished product, from design led screen to produce, we control all steps, that's the guarantee of the quality and reliability of led screen.
4.led display manufacturers Good service: Better service at same situation, better cooperation at same service!
|
Pixel Pitch |
10mm |
|
Pixel composing |
1W |
|
Density |
10,000dots/m2 |
|
module resolution |
32 dots* 16 dots |
|
Module size |
320mm * 160mm |
Whole P10 white led display parameters:
|
Pixel pitch |
10mm |
Short circuit protection |
Yes |
|
Standard cabinet size |
960mm*480mm or design |
Refresh |
400 Hz |
|
Weight per sqm |
30Kg/sqm |
Changing frame frequency |
60 Hz |
|
Whiteness brightness |
3500 cd/sqm |
Driving method |
Constant driving ,1/4scan |
|
Led package |
DIP |
Working Environment |
Outdoor |
|
Wave Angle (H) |
110°(H)/30°(V) |
Working temperature |
-10~50℃ |
|
Best view distance |
≥5m |
Working Humidity |
-10~90% |
|
Working voltage |
AC 220v/380v±10%50~60Hz |
Out of control |
1/10,000 ( scattered) |
|
Power consumption/ m2 |
200W/sqm |
lifetime |
100,000 hours |
